Triggering an Alarm

Quickly jump back to your Cloud9 terminal and call your GetItemByID API.

Export the stack output variables

To invoke our API’s, we first need to fetch the ApiUrl output variable that our CloudFormation stack gives us. So let us iterate through our stack and export all output variables as environment variables:

export ApiUrl=$(aws cloudformation describe-stacks --stack-name monitoring-app --output json | jq '.Stacks[].Outputs[] | select(.OutputKey=="ApiUrl") | .OutputValue' | sed -e 's/^"//'  -e 's/"$//')
echo "export ApiUrl="$ApiUrl

Test the Get Item By ID operation

curl -X GET $ApiUrl/items/1 | jq

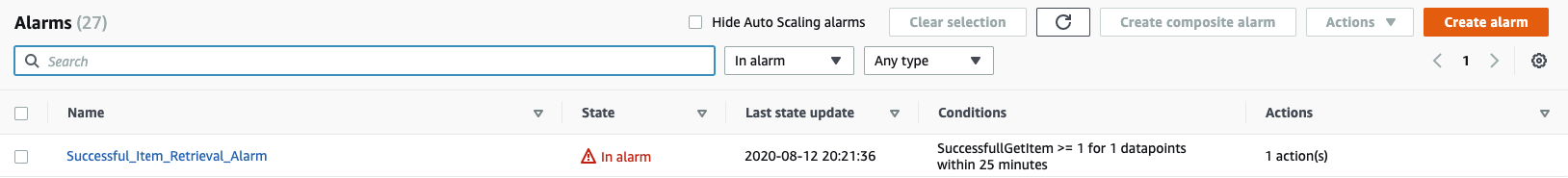

Once you have created the alarm, you will notice that the alarm is now in Insufficient data state which indicates that there is not enough data to validate the alarm. Waiting for 5 minutes will change the alarm state to OK in green or In alarm in red.

alarm-5

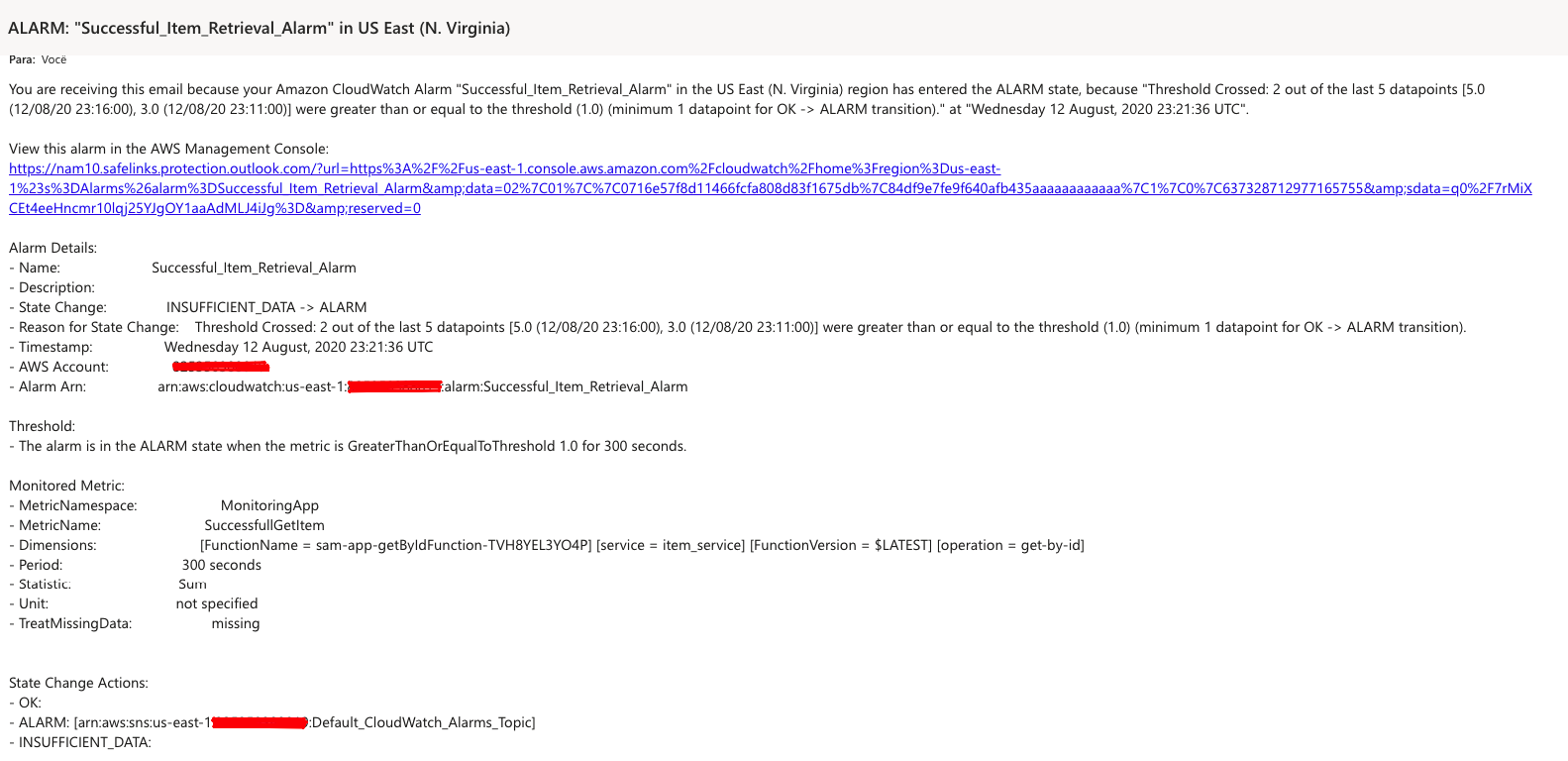

You should receive an e-mail shortly after the first period of data collection.

alarm-6
